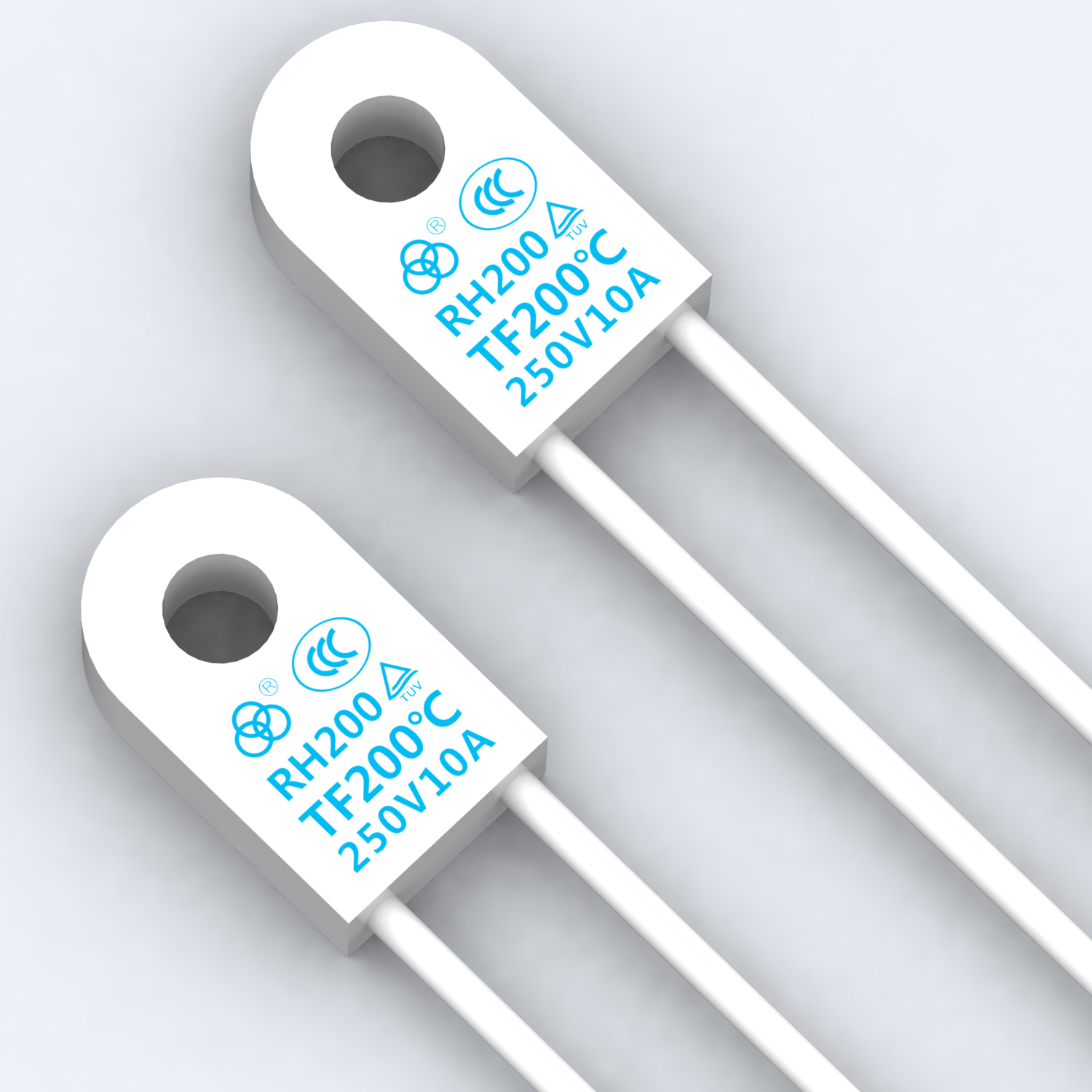

RH-3 Series thermal fuse


>Electric Paramemeters
>Dimensional Drawing
>Rated Form
>PDF Download
>Ask for Sample

Contact Us
Technical support:86-021-62041956/57/58
Sales hotline:18317171709

Electric Paramemeters


Rated Voltage 250V,AC
Rated Current 10A
Frequency 50 or 60HZ
Max Quantity ofelectricity allowed 250V,AC 10A

Dimensional Drawing

Number

Number

Specifications

A

2

High temperature resistant silicone Bang,0.5mm2,lead length optional
Heat-resistant Teflon electronic wire,ul1332-22,Lead length optional

B

2

Φ 4 heat shrinkable casing, black, long 15 ± 2

C

2

4.8 Inserts, thick 0.5mm

Rated Form


Part Number
TF ℃
TO ℃
TH ℃
TM ℃
Rated Current
Rated Voltage
Pass certification
RH-3-200
200
195±5
150
280
10A
250V
RH-3-230
230
225±5
180
RH-3-240
240
235±5
190
